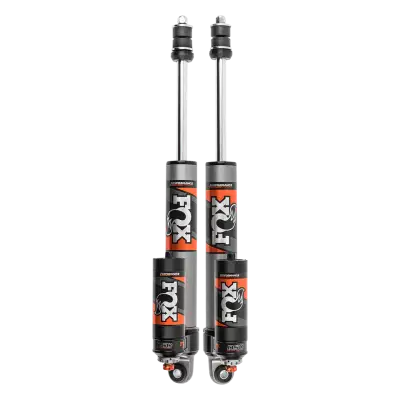

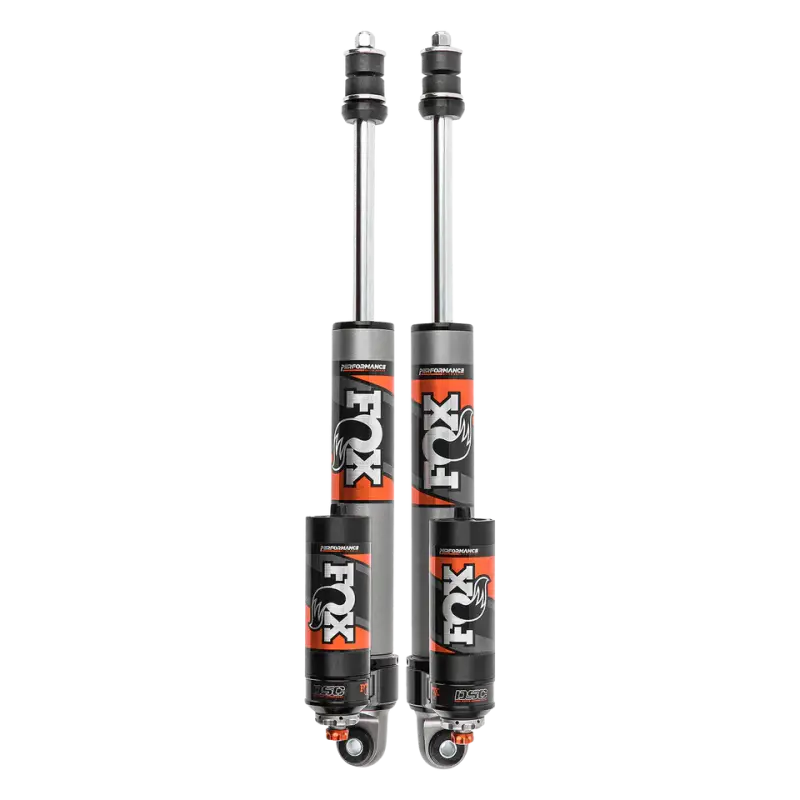

FOX RAM (14-25) 2500 REAR 2.5 PERFORMANCE ELITE SERIES (883-06-065)
This image is a representation of the product only. Actual product may vary in appearance.
FOX-88306065
0 In Stock
Not Available
Pricing:
$2,108.46
Description
Performance Elite Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.
The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.
The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.
Extended Information
- US
- N
Prop 65 Notice
ATTENTION STATE OF CALIFORNIA CONSUMERS: *WARNING* Cancer and reproductive harm-www.p65warnings.ca.gov
Vehicle Fitment
No Fitment Supplied
Specification
PART NUMBER
883-26-065
FEATURES
Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components
SERIES
Performance Elite
TRAVEL
9.1
REAR LIFT HEIGHT
0-2
BODY
2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
BODY PLATING
Hard-anodized for a durable finish
COMPONENTS
Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT
7/8" hard chrome plated heat-treated alloy steel
PISTON
Race-developed high-flow piston design
VALVING
Application specific valving to maximize performance
SEALS
Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS
PTFE-lined, heat-treated, alloy steel spherical
EXTENDED LENGTH
24.72
COMPRESSED LENGTH
15.62
TOP MOUNT
Stem Top
BOTTOM MOUNT
Eyelet
883-26-065
FEATURES
Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components
SERIES
Performance Elite
TRAVEL
9.1
REAR LIFT HEIGHT
0-2
BODY
2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
BODY PLATING
Hard-anodized for a durable finish
COMPONENTS
Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT
7/8" hard chrome plated heat-treated alloy steel
PISTON
Race-developed high-flow piston design
VALVING
Application specific valving to maximize performance
SEALS
Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS
PTFE-lined, heat-treated, alloy steel spherical
EXTENDED LENGTH
24.72
COMPRESSED LENGTH
15.62
TOP MOUNT
Stem Top
BOTTOM MOUNT
Eyelet
Details
- FOX-88306065
- FOX-88306065
- 714686852036
- Fox Racing Shox
- Temporarily Not Available
- New
