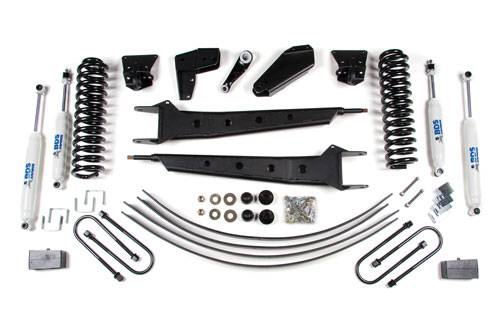

BDS 6 Inch Lift Kit w/Radius Arm and 4" Rear Block Kit for Ford F100/F150 (80-96) 4WD (508H)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS508H
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $1,556.36
Qty:

Description

Built to outperform, take your Ford 1980-1983 F100 and 1980-1996 F150 4WD truck to the next level with a 6-inch suspension lift kit with extended radius arms by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended radius arms, radius arm drop mounts, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Extended Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. The extended radius arm system will reduce caster change through wheel travel creating a more capable and controlled feeling in the steering wheel both on and off road.

Features & Benefits

  • Easy, Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty steel drop brackets for proper suspension geometry
  • Cast steel blocks provide level stance from front to rear
  • NX2 Nitro shocks with vehicle-specific valving for better control

Important Notes

  1. Front end alignment required. Alignment cams may be required. See page 118.
  2. #123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems between 1980 and 1996. In extremely rare cases, modification may be required.
  3. Extended lines required for all 4-6" lifts.
  4. Does not fit F150 models without power steering.

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 6
  • Rear Lift Method : Block
  • Rear Lift Height : 4"
  • Shocks Included : Yes
  • Lift Height : 6-7.5"

Additional Information

Installation Time: 8 hrs

Installation Difficulty: Difficult

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 3.5

Installation Tools: Air Hammer (Recommended), Metric/Standard Socket Wrench Set, Drill / Bit Set, Jack / Jack Stands

Steering Stabilizers Option: -

Add On Accessories: BDS123401,BDS129000,BDS129100

Add On Traction Bars: -

Add On Control Arms: -

Vehicle Fitment

Supplied Vehicle Information for BDS508H
