BDS 6 Inch Lift Kit w/NX2 Shocks for Ford Ranger (83-97) 4WD (518H)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS518H
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $1,037.13
Qty:

Description

Improve the ride and level out your 1983-1997 Ford Ranger 4WD truck with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

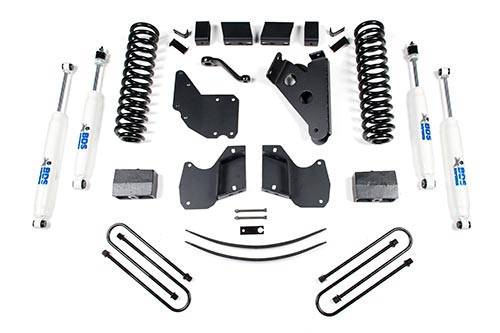

Up front the lift kit includes Pro-Ride coil springs, heavy duty axle pivot brackets, radius arm drop brackets, forged pitman arm for steering correction, bump stop extensions and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, truck-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Features & Benefits

  • Easy, Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty steel drop brackets for proper suspension geometry
  • Cast steel blocks provide level stance from front to rear
  • NX2 Nitro shocks with vehicle-specific valving for better control

Important Notes

  1. Ball joint alignment cam will be required for alignment, these are available in the options section or from your local alignment shop.
  2. Extra cab models may not achieve stated height.
  3. Models equipped with a 2-piece driveshaft will require the carrier bearing crossmember to be lowered.
  4. Bronco II 1985-90 models with CV joint type drive shaft must be converted to an exposed joint shaft.
  5. Vehicles equipped with factory STX package will not achieve stated height
  6. The dual steering stabilizer listed in the accessories will not fit applications with a factory front sway bar.

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 6
  • Rear Lift Method : Block
  • Rear Lift Height : 5.5"
  • Shocks Included : Yes
  • Lift Height : 6-7.5"

Additional Information

Installation Time: 6 hrs

Installation Difficulty: Moderate

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 3.5

Installation Tools: -

Steering Stabilizers Option: BDS55337,BDS85402

Add On Accessories: BDS129101,BDS129102

Add On Traction Bars: -

Add On Control Arms: -
