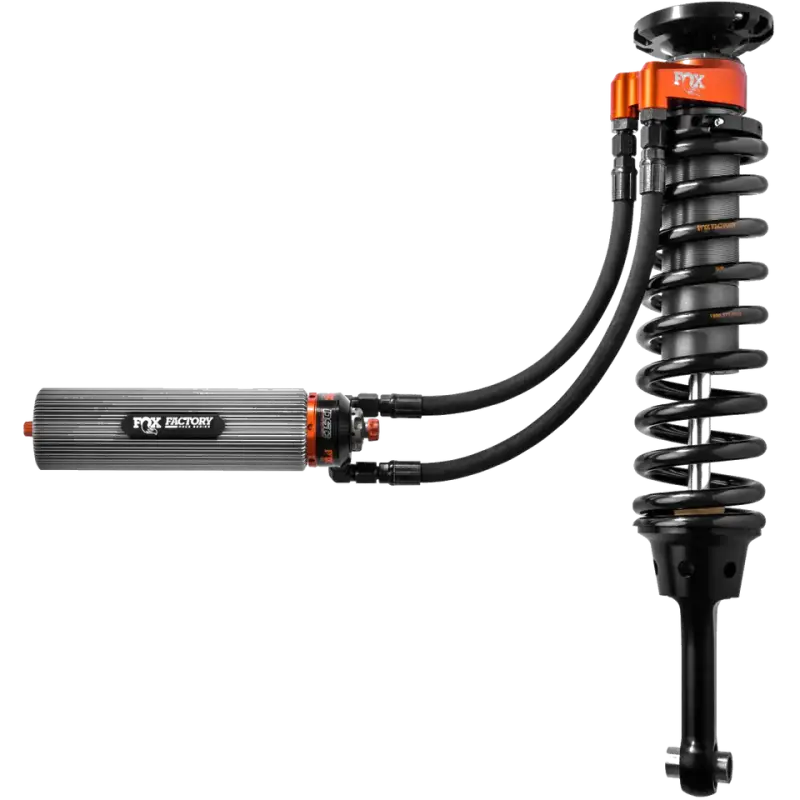

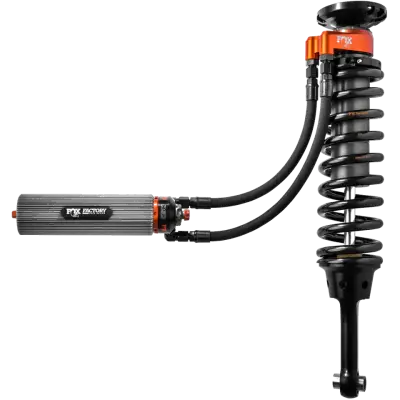

FOX FORD (17-18) F-150 RAPTOR FRONT 3.0 FACTORY RACE SERIES (883-06-140)
This image is a representation of the product only. Actual product may vary in appearance.
FOX-88306140
0 In Stock
Not Available
Pricing:
$3,879.95
Description
Take your Gen 2 Raptor to the next level with this Factory Race Series front upgrade kit, designed to deliver a high level of adjustability via Dual Speed Compression (DSC) adjusters and improved cooling efficiency through an all-new Recirculating Reservoir Bridge and finned remote reservoir.
This kit delivers the next level of off-road performance without sacrificing every day ride quality and comfort.
This kit delivers the next level of off-road performance without sacrificing every day ride quality and comfort.
Prop 65 Notice
ATTENTION STATE OF CALIFORNIA CONSUMERS: *WARNING* Cancer and reproductive harm-www.p65warnings.ca.gov
Vehicle Fitment
Supplied Vehicle Information for 88306140
Specification
PART NUMBER
883-06-140
FEATURES
Performance Tuned For Vehicle Specific Application; Durable Zinc Plated Seamless Alloy Body; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components
SERIES
Factory Race
TRAVEL
7.85
FRONT LIFT HEIGHT
0-2
BODY
3.0" Hard anodized aluminum
BODY PLATING
NEW, hard anodized extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
RESERVOIR
Hard anodized, CNC-machined 6061-T6 billet aluminum
COMPONENTS
3.75" racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
SHAFT
7/8" 17-4 H900 hard chrome plated stainless steel
PISTON
Hard anodized 6061-T6 billet aluminum high flow race piston
VALVING
Specific for Gen 2 Raptor to maximize performance and comfort
BEARINGS
Spherical, PFTE-lined, heat-treated steel
EXTENDED LENGTH
28.45
COMPRESSED LENGTH
20.6
TOP MOUNT
TM
BOTTOM MOUNT
Eyelet
SPRING RATE
3.75" racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
883-06-140
FEATURES
Performance Tuned For Vehicle Specific Application; Durable Zinc Plated Seamless Alloy Body; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components
SERIES
Factory Race
TRAVEL
7.85
FRONT LIFT HEIGHT
0-2
BODY
3.0" Hard anodized aluminum
BODY PLATING
NEW, hard anodized extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
RESERVOIR
Hard anodized, CNC-machined 6061-T6 billet aluminum
COMPONENTS
3.75" racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
SHAFT
7/8" 17-4 H900 hard chrome plated stainless steel
PISTON
Hard anodized 6061-T6 billet aluminum high flow race piston
VALVING
Specific for Gen 2 Raptor to maximize performance and comfort
BEARINGS
Spherical, PFTE-lined, heat-treated steel
EXTENDED LENGTH
28.45
COMPRESSED LENGTH
20.6
TOP MOUNT
TM
BOTTOM MOUNT
Eyelet
SPRING RATE
3.75" racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
