BDS 2.5 Inch Leveling Kit w/Fox Shocks for Ford Ranger (19-23) 4WD (1546FS)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS1546FS
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $731.11
Qty:

Description

Properly level the front of your 2019-2023 Ford Ranger truck by installing this 2.5-inch leveling kit from BDS. Specially designed for the new Ranger, this 2.5" leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer. To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates.

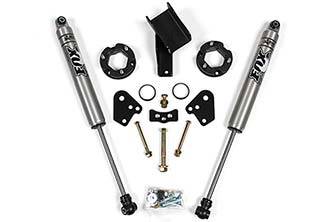

The lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation brackets  and custom-tuned NX2 Nitro or FOX Performance series shocks. Give your new Ranger the extra boost with this 2.5" leveling kit from BDS Suspension.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Maintains factory like ride quality
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Important Notes

  1. Aftermarket wheels must have a minimum of 93.1mm center hub bore.
  2. Tires larger than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
  3. Strut disassembly required, high quality wall mounted strut compressor and skilled technichian recommended.
  4. Will NOT work on trucks equipped with cast steel steering knuckles.
  5. Wil NOT work with Tremor models.

Specification

  • Front Lift Method : Strut Spacer
  • Front Lift Height : 2.5
  • Rear Lift Method : Stock
  • Rear Lift Height : 0"
  • Shocks Included : Yes
  • Lift Height : 2-3.5"

Additional Information

Installation Time: 4 hrs

Installation Difficulty: Moderate

Add On Required Hardware: Nothing Requried At This Time

Backspacing: -

Installation Tools: 35mm Axle Nut Socket, Air Hammer (Recommended), Step Drill Bit, Cut-off Tool, Drill / Bit Set, Strut Compressor

Steering Stabilizers Option: -

Add On Accessories: BDS123109,BDS123614

Add On Traction Bars: -

Add On Control Arms: BDS123252

Vehicle Fitment

Supplied Vehicle Information for BDS1546FS

Prop 65 Notice

ATTENTION STATE OF CALIFORNIA CONSUMERS: *WARNING* Cancer and reproductive harm-www.p65warnings.ca.gov

Details

  • BDSK-BDS1546FS
  • BDSK-BDS1546FS
  • BDS
  • 2019 Ford Ranger
  • New
