BDS 4 Inch Lift Kit w/Radius Arm and Fox Shocks for Ford F350 Super Duty DRW (20-22) 4WD Gas (1564FS)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS1564FS
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $2,486.94
Qty:

Description

Improve the ride on your Ford F350 Dually Super Duty gas truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37" tires.

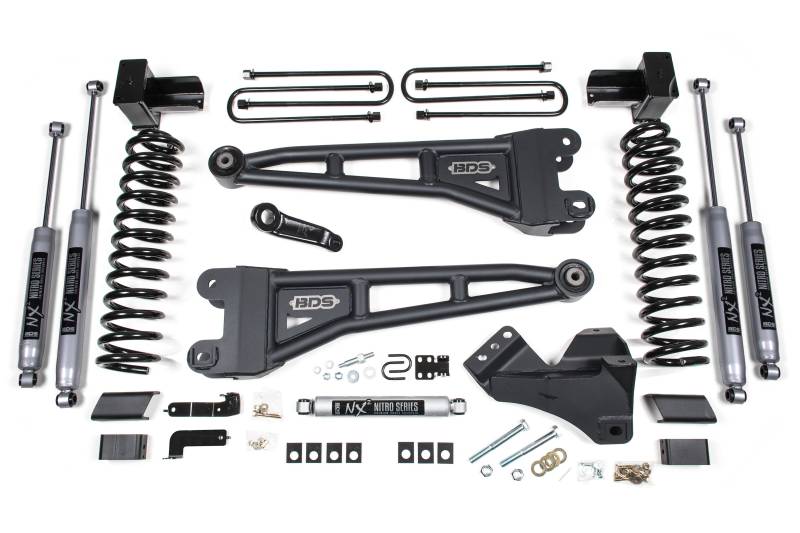

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Important Notes

  1. Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
  2. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  3. Front exhaust modification may be required to clear the front drive shaft (Gas Only)
  4. Torque wrench capable of 405 ft-lbs required.
  5. 37 x 12.50 tires may require minor trimming.

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 3"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"

Additional Information

Installation Time: 6-8 hrs

Installation Difficulty: Difficult

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 5

Installation Tools: Cut Off Wheel or Equiv., Pitman Arm Puller

Steering Stabilizers Option: BDS2022DF,BDS2022DH

Add On Accessories: BDS123203,BDS123402,BDS123808

Add On Traction Bars: BDS2309,BDS2312

Add On Control Arms: -

Vehicle Fitment

Supplied Vehicle Information for BDS1564FS
