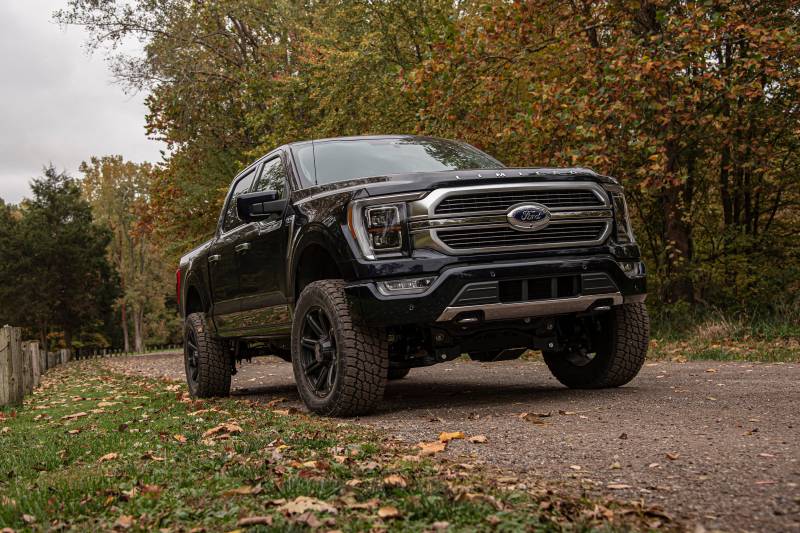

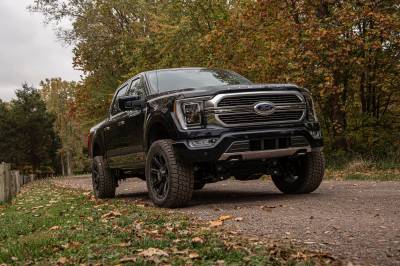

BDS 4 Inch Lift Kit FOX 2.5 Performance Elite Coil-Over w/3" Rear Block for Ford F150 (21-25) 4WD (1584FPE)
This image is a representation of the product only. Actual product may vary in appearance.
BDSK-BDS1584FPE
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing:
$5,592.27
Description
Maximize the performance and capability of the 2021-2025 Ford F150 trucks with 4-inch coil-over suspension lift kits. These kits feature proprietary FOX Performance Elite 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your F150 truck up right with clearance for up to 35" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.5 remote reservoir coil-over shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along with perfectly tuned FOX 2.0 Performance Series shocks.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
High clearance crossmembers improve strength and offroad capability
Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily
Differential skid plate for improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance
Functions with Blue Cruise
Recommended Tires & Wheels
(Trimming may be required)
35 x 12.5 with 20 x 8 and 5.5 in. Backspace
35 x 12.5 with 20 x 9 and 5.75 in. Backspace
Rear Lift Option
3 Inch Block Kit
Level to tail high appearance
2 Inch Block Kit
Tail low to level stance
Rear Shock Option
FOX 2.0 Performance Series
2-inch Impact extruded aluminum body
Internal floating piston (IFP) monotube design
CNC machined 6061-T6 aluminum mounting ends
Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
Increased off-road capabilities
Easily adjust your shock for terrain, load and speed
2.5-inch Impact extruded aluminum body
Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
External reservoir design separates shock oil from the high-pressure nitrogen
DSC - Dual Speed Compression Adjuster comes standard
Fully serviceable for a lifetime of use
1-year Manufacturer's Warranty
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.5 remote reservoir coil-over shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along with perfectly tuned FOX 2.0 Performance Series shocks.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
High clearance crossmembers improve strength and offroad capability
Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily
Differential skid plate for improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance
Functions with Blue Cruise
Recommended Tires & Wheels
(Trimming may be required)
35 x 12.5 with 20 x 8 and 5.5 in. Backspace
35 x 12.5 with 20 x 9 and 5.75 in. Backspace
Rear Lift Option
3 Inch Block Kit
Level to tail high appearance
2 Inch Block Kit
Tail low to level stance
Rear Shock Option
FOX 2.0 Performance Series
2-inch Impact extruded aluminum body
Internal floating piston (IFP) monotube design
CNC machined 6061-T6 aluminum mounting ends
Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
Increased off-road capabilities
Easily adjust your shock for terrain, load and speed
2.5-inch Impact extruded aluminum body
Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
External reservoir design separates shock oil from the high-pressure nitrogen
DSC - Dual Speed Compression Adjuster comes standard
Fully serviceable for a lifetime of use
1-year Manufacturer's Warranty
Prop 65 Notice
ATTENTION STATE OF CALIFORNIA CONSUMERS: *WARNING* Cancer and reproductive harm-www.p65warnings.ca.gov
Important Notes
18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance.
Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
Block kits replace factory 1-1/4" block. The stock block will not be reinstalled.
Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
Does NOT fit diesel models.
Will not work with Tremor models.
Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
Will not work with models with CCD (Continuous Controlled Damping)
3" Block kit recommended for a more level stance, 2" block kit will result in a tail low stance.
Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance.
Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
Block kits replace factory 1-1/4" block. The stock block will not be reinstalled.
Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
Does NOT fit diesel models.
Will not work with Tremor models.
Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
Will not work with models with CCD (Continuous Controlled Damping)
3" Block kit recommended for a more level stance, 2" block kit will result in a tail low stance.
Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
Specification
Front Lift Method : Cross-Member
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 2"
Shocks Included : Yes
Lift Height : 4-5.5"
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 2"
Shocks Included : Yes
Lift Height : 4-5.5"
