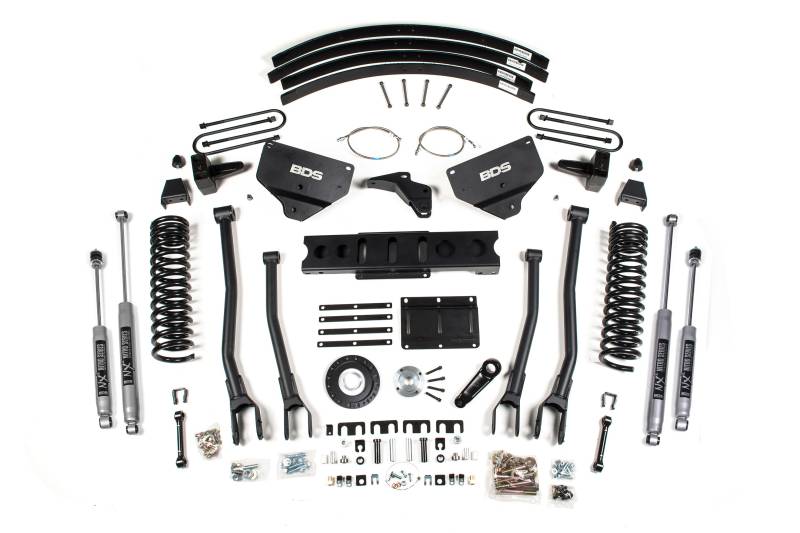

BDS 8 Inch Lift Kit w/Fox Shocks and 4-Link for Ram 3500 (13-18) 4WD Diesel (1614FS)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS1614FS
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $4,705.71
Qty:

Description

Go big with the BDS Suspension engineered 8-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stops, stainless steel brakelines and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a block and add-a-leaf combo or optional full replacement BDS Glideride leaf springs. Also included are new u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Important Notes

  1. Carrier bearing drop kit will be required for 2-piece rear drive shaft
  2. Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 8"
  • Rear Lift Method : Leaf Spring
  • Rear Lift Height : 5"
  • Shocks Included : Yes
  • Lift Height : 8-10"

Additional Information

Installation Time: 10 hrs

Installation Difficulty: Difficult

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 4.5

Installation Tools: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Steering Stabilizers Option: BDS85427,FOX98224018,FOX98302158,FOX98502135

Add On Accessories: BDS122007,BDS122324,BDS122406,BDS122814

Add On Traction Bars: BDS2305

Add On Control Arms: -
