BDS 4 Inch Lift Kit w/Fox Shocks and Strut Spacer for Chevy Silverado or GMC Sierra 1500 (2025) 4WD Gas (1851FS)

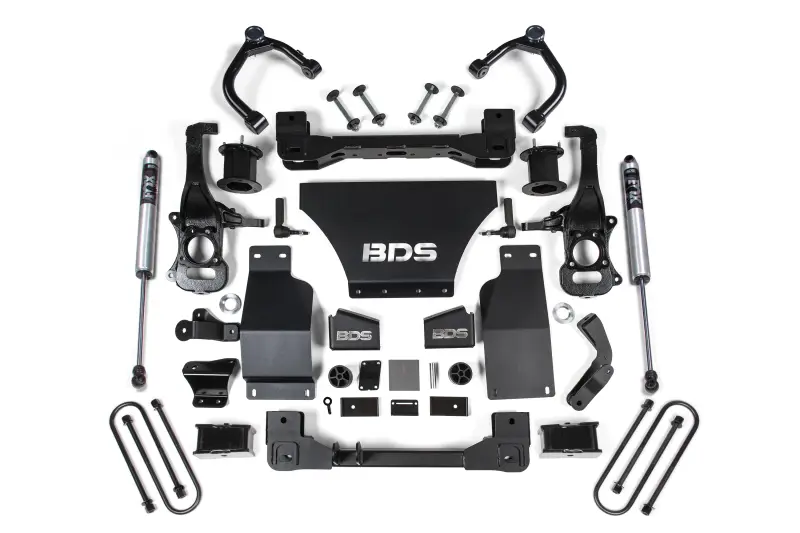

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS1851FS
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $2,773.67
Qty:

Description

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX performance series IFP gas rear shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Important Notes

  1. Fits 4X4 Models only
  2. Does not work with models equipped with ARC.
  3. Does not work with Denali, High Country, ZR2, or AT4X models.
  4. Works on Gas models only
  5. If equipped with a mono-leaf rear spring, please use part #UBT4064.

Specification

  • Front Lift Method : Cross Member & Strut Spacer
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 3"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"

Additional Information

Installation Time: 8 hrs

Installation Difficulty: Difficult

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 4.5

Installation Tools: 36mm Socket, Cut Off Wheel or Equiv., Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment

Steering Stabilizers Option: -

Add On Accessories: BDS121664,BDS121665,UBT4064

Add On Traction Bars: -

Add On Control Arms: -
