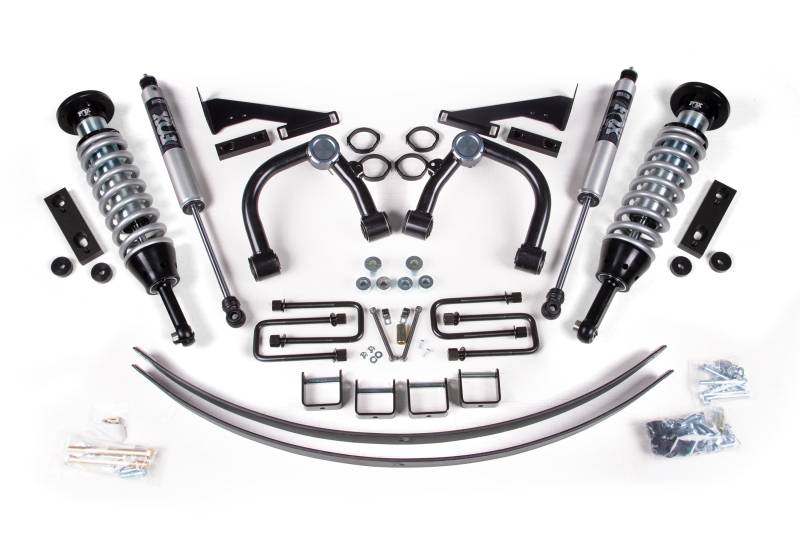

BDS 2 Inch Lift Kit FOX 2.5 IFP Coil-Over for Toyota Tacoma (16-23) 4WD (835FNR)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS835FNR
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $3,440.75
Qty:

Description

Take your 2016-2023 Toyota Tacoma truck to the next level by installing this 2-inch lift kit featuring FOX 2.5 IFP coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front the lift kit includes FOX 2.5 Factory Series IFP non reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. Additionally, 1" front differential spacers and longer hardware is supplied to reposition the front differential to keep CV axles within the correct operating angles.

In the rear, BDS supplies a set of add-a-leafs to provide 1" of lift to level out the truck and utilizes a complementary set of FOX 2.0 Performance shocks for an improved ride.

FOX Coil-Over Shocks

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

  • FOX 2.5 Factory series coil-overs offer improved damper performance over stock
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX 2.0 performance series IFP rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation

Important Notes

No Important Notes Listed At This Time

Specification

  • Front Lift Method : Coil-Over
  • Front Lift Height : 2
  • Rear Lift Method : Add-A-Leaf
  • Rear Lift Height : 2"
  • Shocks Included : Yes
  • Lift Height : 2-3.5"

Additional Information

Installation Time: 4 hrs

Installation Difficulty: Moderately Easy

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 4.5

Installation Tools: 35mm Axle Nut Socket, Cut-off Tool, Drill / Bit Set

Steering Stabilizers Option: -

Add On Accessories: -

Add On Traction Bars: -

Add On Control Arms: -
