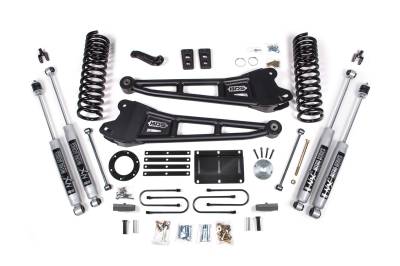

BDS 6 Inch Lift Kit w/Radius Arm and Fox 2.5 Performance Elite for Ram 3500 (13-18) 4WD Diesel (2104FPE)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS2104FPE
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $5,943.29
Qty:

Description

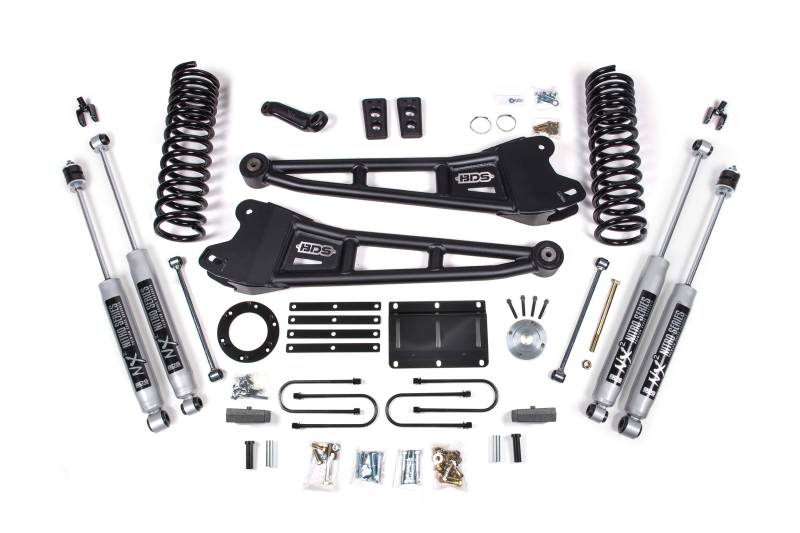

Take your 2013-2018 RAM 3500 diesel powered truck to the next level by installing a 6-inch lift kit with radius arms engineered by BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty tubular radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas, FOX Performance Series IFP, or FOX Performance Elite Series gas shocks to improved ride and offroad performance

Important Notes

  1. The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.
  2. Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
  3. Will not fit air ride equipped models
  4. Diesel models only

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 6
  • Rear Lift Method : Block
  • Rear Lift Height : 5"
  • Shocks Included : Yes
  • Lift Height : 6-7.5"

Additional Information

Installation Time: 6-8 hrs

Installation Difficulty: Moderate

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 5.625

Installation Tools: 8677 Chrysler ball joint seperation tool (or Equiv), Step Drill Bit, Cut-off Tool, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Steering Stabilizers Option: BDS85427,FOX98224018,FOX98302158,FOX98502135

Add On Accessories: BDS122406,BDS122414,BDS122609

Add On Traction Bars: BDS2305

Add On Control Arms: -

Vehicle Fitment

Supplied Vehicle Information for BDS2104FPE
