BDS 5 Inch Lift Kit w/Fox Shocks for Dodge W100/W200 (69-73) 4WD (200FS)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS200FS
Available
Pricing: $1,703.62
Qty:

Description

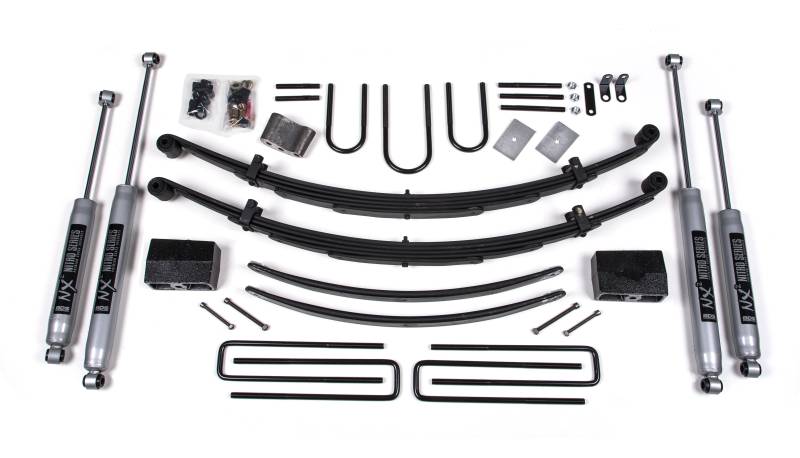

Designed to improve stance, performance, and capability. BDS Suspension has designed this 5-inch lift kit for your 1969-1973 Dodge RAM 1500 and 2500 truck. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes Glide-Ride leaf springs, 3" steering block to correct steering linkage angles, and brake line brackets. In the rear this kit utilizes a high-strength lift blocks, add-a-leaf, and longer u-bolts. The round out these kits with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • New steering arm maintains proper steering angles for improved handling
  • Cast steel blocks and add-a-leaf provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Important Notes

  1. On models with Saginaw or Corporate type front driveshaft, CV cluster may require dressing to prevent binding.
  2. Anti-Sway bar links will have to be sectioned and lengthened.
  3. Not for heavy duty 3/4 ton.
  4. I.D. of the bushing is smaller than the mounting pin and will require lubrication and extra effort for installation.
  5. #082501 steering block only fits Dana 44 with 3 bolt knuckle.

Specification

  • Front Lift Method : Leaf Spring
  • Front Lift Height : 5"
  • Rear Lift Method : Block
  • Rear Lift Height : 5"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"

Additional Information

Installation Time: 6-8 hrs

Installation Difficulty: Moderately Easy

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 4

Installation Tools: Pitman Arm Puller

Steering Stabilizers Option: -

Add On Accessories: -

Add On Traction Bars: -

Add On Control Arms: -

Vehicle Fitment

Supplied Vehicle Information for BDS200FS
