BDS 10 Inch Lift Kit w/Fox Shocks for Ford Excursion (00-05) 4WD (305FS)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS305FS
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $3,087.24
Qty:

Description

Raise the bar of your 2000-2005 Ford Excursion 4WD by installing this 10-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

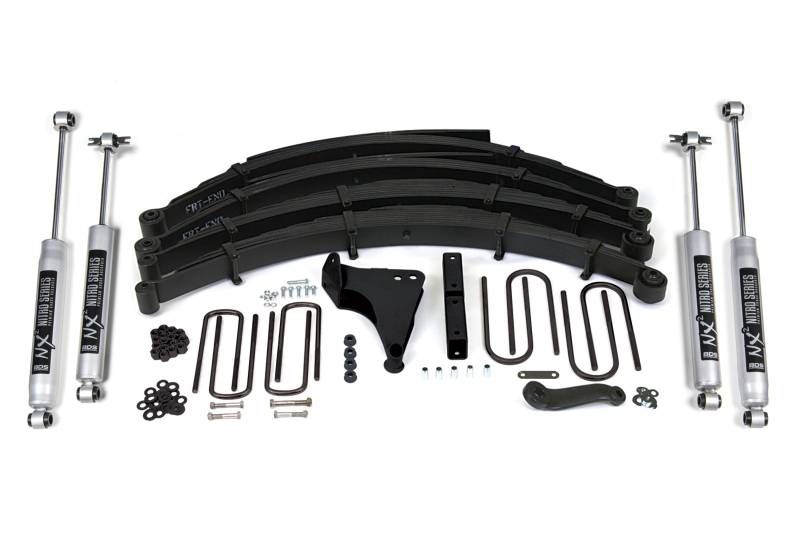

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear the base kit utilizes replacement Glide-Ride full leaf spring packs, u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
  • Cast steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Important Notes

  1. Models with rear CV style driveshaft may experience drive line vibration.
  2. If your vehicle is equipped with a rear anti-sway bar, you should consider the rear sway bar links available in the options section.
  3. Front and rear driveshaft modification will be required.
  4. Due to variance from the factory in rear block height, it may be necessary to change the factory block to achieve a desired stance.

Specification

  • Front Lift Method : Leaf Spring
  • Front Lift Height : 10"
  • Rear Lift Method : Leaf Spring
  • Rear Lift Height : 10"
  • Shocks Included : Yes
  • Lift Height : 8-10"

Additional Information

Installation Time: 10 hrs

Installation Difficulty: Moderate

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 4

Installation Tools: Drill / Bit Set, Pitman Arm Puller

Steering Stabilizers Option: BDS2025DF,BDS2025DH,BDS2025SF,BDS2025SH

Add On Accessories: -

Add On Traction Bars: -

Add On Control Arms: -

Vehicle Fitment

Supplied Vehicle Information for BDS305FS
