BDS 3.5 Inch Lift Kit w/Light Duty Rear Leaf Springs for Jeep Wrangler YJ (87-95) (409H)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS409H
Available
Pricing: $1,189.54
Qty:

Description

Designed to improve stance, performance, and capability. BDS Suspension has designed this 3.5-inch lift kit for your 1987-1995 Jeep Wrangler YJ. This kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

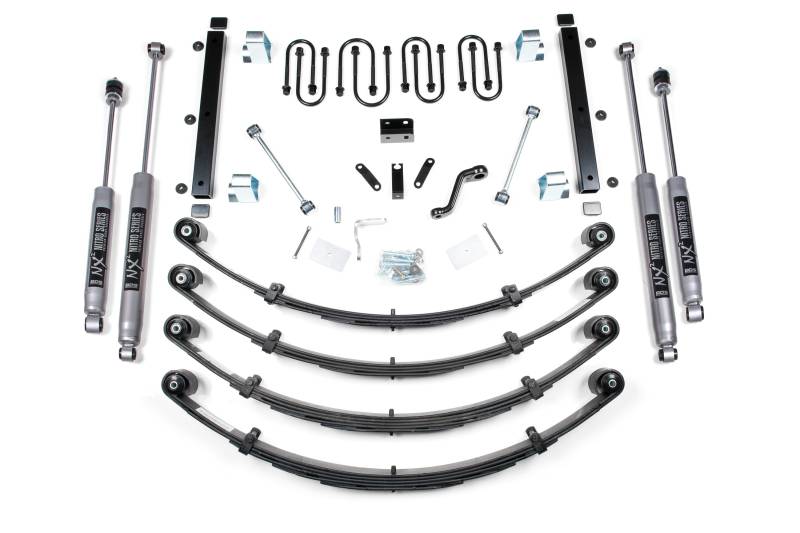

This 3.5-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, brake line brackets, power steering pitman arm, bump stop extensions, and a transfer case drop kit to ease the drive line angles. Round out this kit with specially tuned NX2 nitro series gas shocks to offer improved damper performance.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Features & Benefits

  • Glideride leaf springs to provide full lift height and increased capacity
  • Front and rear track bar relocation brackets to center the axle
  • Transfer case drop kit to ease the drive line angles
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Easy, 100% Bolt-on installation

Important Notes

  1. May require driveshaft lengthening for 13" (u-joint to u-joint) driveshaft.
  2. May require larger diameter driveshaft if equipped with a 41-1/2" front driveshaft.
  3. Extended shackles recommended to clear military wrap.
  4. Models with accessories like hardtop, rear tire carrier, roof rack etc., should use #004351 springs on front and rear.
  5. When combining lifted shackles with a 3.5" suspension system, a tail shaft eliminator kit and a "CV" style rear driveshaft may be required to eliminate driveline vibration.
  6. Pitman arms will NOT fit Yj models equiped with manual steering.

Specification

  • Front Lift Method : Leaf Spring
  • Front Lift Height : 3.5
  • Rear Lift Method : Leaf Spring
  • Rear Lift Height : 3-5"
  • Shocks Included : Yes
  • Lift Height : 2-3.5"

Additional Information

Installation Time: 6 hrs

Installation Difficulty: Moderate

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 3.5

Installation Tools: Torque Wrench, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller

Steering Stabilizers Option: BDS85407

Add On Accessories: BDS074004,BDS124008,BDS124102,JKS4100

Add On Traction Bars: -

Add On Control Arms: -

Vehicle Fitment

Supplied Vehicle Information for BDS409H
