BDS 4.5 Inch Lift Kit w/Light Duty Leaf Springs for Jeep Wrangler YJ (87-95) (411H)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS411H
Available
Pricing: $1,668.89
Qty:

Description

Designed to improve stance, performance, and capability. BDS Suspension has designed this 4.5-inch lift kit for your 1987-1995 Jeep Wrangler YJ. This kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

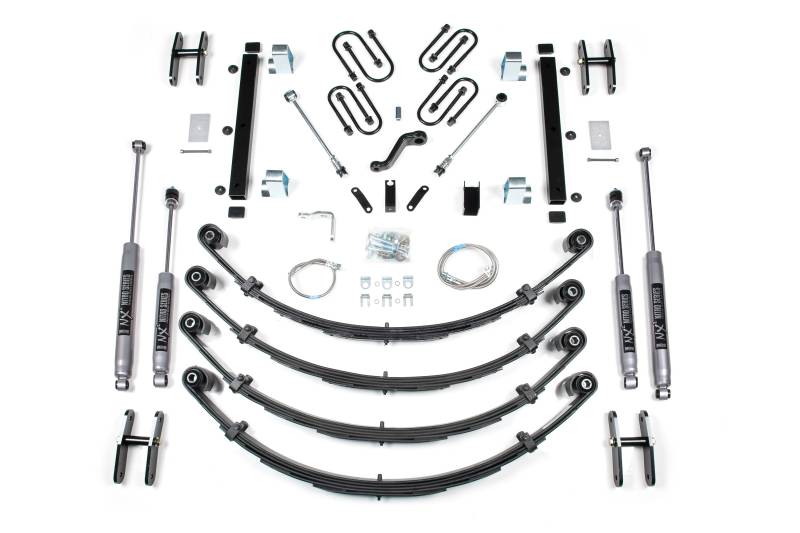

This 4.5-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, stainless steel braided brake lines, sway bar disconnects, power steering pitman arm, bump stop extensions, a transfer case drop kit to ease the drive line angles and 1" extended shackles to let your springs really flex. Round out this kit with specially tuned NX2 nitro series gas shocks to offer improved damper performance.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Features & Benefits

  • Glideride leaf springs to provide full lift height and increased capacity
  • Front and rear track bar relocation brackets to center the axle
  • Transfer case drop kit to ease the drive line angles
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Easy, 100% Bolt-on installation

Important Notes

  1. May require driveshaft lengthening if equipped with 13"( u-joint to u-joint) driveshaft.
  2. May require larger diameter driveshaft if equipped with a 41-1/2" front driveshaft.
  3. If you have a heavy Jeep (ie. Hard top with full size spare) you will want to run the front springs on both the front and rear. This selection can be made in the customize section before checking out.
  4. A slip yoke eliminator and dual cardan style rear driveshaft may be required to eliminate drive line vibration.
  5. Pitman arms will NOT fit Yj models equiped with manual steering.

Specification

  • Front Lift Method : Leaf Spring
  • Front Lift Height : 4.5"
  • Rear Lift Method : Leaf Spring
  • Rear Lift Height : 4.5"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"

Additional Information

Installation Time: 8 hrs

Installation Difficulty: Moderate

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 3.5

Installation Tools: Torque Wrench, Brake Fluid, Jack / Jack Stands, Pitman Arm Puller

Steering Stabilizers Option: BDS85407

Add On Accessories: BDS074004,BDS124008,BDS124102,JKS4100

Add On Traction Bars: -

Add On Control Arms: -

Vehicle Fitment

Supplied Vehicle Information for BDS411H
