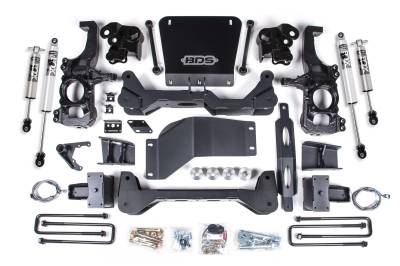

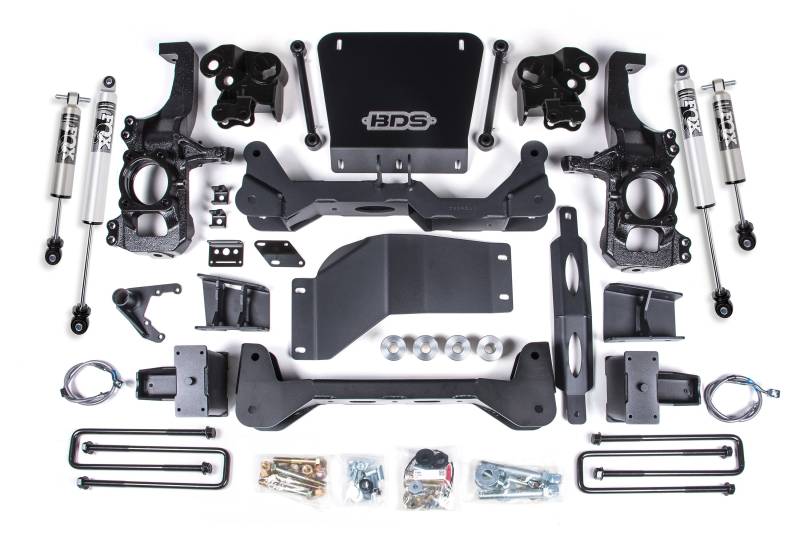

BDS 5 Inch Lift Kit FOX 2.5 HTO Performance Series for Chevy Silverado or GMC Sierra 2500HD/3500HD w/o Overloads (20-25) 4WD (766FPP)

Take your 2020-2025 Chevy Silverado and GMC Sierra 2500 HD 4WD to the next level by installing this 5-inch lift kit by BDS Suspension. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. Designed to improve the stance, performance, and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great onroad handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, stainless steel brake lines, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers replacement lift blocks and u-bolts to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also included, BDS supplies brake line and ABS line relocation brackets allow the use of factory brake lines. Lastly are a matching set of FOX 2.5 HTO Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.

FOX 2.5 Performance Series HTO Shocks

The FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

Features & Benefits

• High clearance design with no torsion bar drop brackets.
• Robust steering knuckles maintain ESC system compliance.
• HD skid plate system improved off road protection.
• Multpoint differential relocation brackets to secure the front axle and improve CV angles.
• Factory Protection Plus drivetrain warranty included
