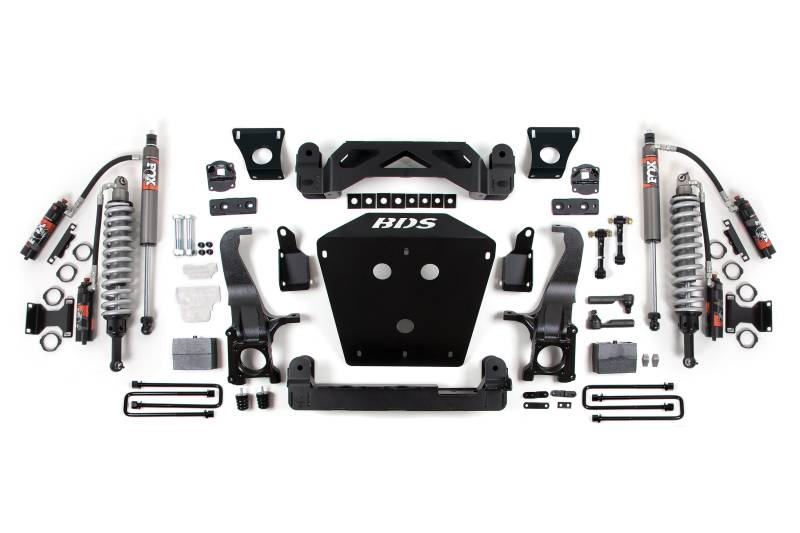

BDS 7 Inch Lift Kit FOX 2.5 Performance Elite Coil-Over for Toyota Tundra (16-21) 2/4WD (818FPE)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS818FPE
Available
Pricing: $5,914.23
Qty:

Description

Unleash the full potential of your Toyota Tundra with the 7-inch Lift Kit, meticulously engineered to deliver uncompromising performance on and off the road. This kit combines BDS Steering Knuckles, and Fox Performance Elite Coil Overs and Rear Shocks, setting a new standard for durability, handling, and style.


Add the optional BDS Upper Control Arms to ensure optimal suspension geometry, enhancing wheel travel and articulation for seamless off-road navigation. Constructed from robust materials, they offer unmatched strength to tackle rugged terrain with confidence.


Steering Knuckles are precision-engineered to maintain factory steering geometry, ensuring precise handling and reducing stress on components. This upgrade allows for increased ground clearance and accommodates larger tires, perfect for conquering any obstacle in your path.


The inclusion of Fox Performance Elite Coil Overs and Rear Shocks elevates ride comfort and control to elite levels. Known for their advanced damping technology and race-proven reliability, these shocks deliver smooth performance across varying terrain, from rocky trails to highways.


Visually striking and functionally superior, the 7-inch Lift Kit transforms your Tundra's appearance with a commanding stance and aggressive profile. It not only enhances off-road capability but also maintains on-road comfort, making it ideal for daily driving and weekend adventures alike.


Whether you're a seasoned off-road enthusiast or exploring new trails, the Toyota Tundra 7-inch Lift Kit with BDS Steering Knuckles, and Fox Performance Elite Coil Overs and Rear Shocks ensures unparalleled performance and durability. Elevate your driving experience today and embrace the limitless possibilities of exploration and adventure.


High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.


Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • FOX 2.5 Performance Elite series adjustable coil overs for improved ride quality, performance, and capability.
  • High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance.
  • HD skid plate system improved offroad protection.
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles.
  • FOX performance series IFP gas rear shocks to improved ride and offroad performance.
  • Factory Protection Plus drivetrain warranty included

Important Notes

  1. Requires from bracket modification and welding.
  2. No strut disassembly required.
  3. Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.
  4. Models with two piece rear drive line would require rear drive shaft modification.
  5. Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
  6. Will NOT work on TRD Pro (Bilstein and Fox Piggyback Strut) models.

Specification

  • Front Lift Method : Coil-Over
  • Front Lift Height : 7"
  • Rear Lift Method : Block
  • Rear Lift Height : 4"
  • Shocks Included : No
  • Lift Height : 6-7.5"

Additional Information

Installation Time: 8 hrs

Installation Difficulty: Moderate

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 5.5

Installation Tools: Reciprocating Saw, Welding Equipment

Steering Stabilizers Option: -

Add On Accessories: -

Add On Traction Bars: -

Add On Control Arms: -
