BDS 7 Inch Lift Kit w/Fox Performance Rear Shocks for Toyota Tundra (22-25) 4WD (840PSS)

Get the ultimate look and performance for your late-model Toyota Tundra with the BDS 7-inch suspension lift kit featuring FOX 2.5 Performance Elite (PE) coil-overs and shocks. These kits include the new aluminum-bodied FOX 2.5 Performance Elite (PE) coil-over shocks, designed specifically to provide bolt-on performance for increased travel, more adjustability via DSC adjustment, and better heat dispersion, allowing you to tackle the roughest terrain both on and off-road. Designed to improve stance, performance, and capability, BDS includes everything necessary to set up your truck with clearance for up to 37-inch tires.

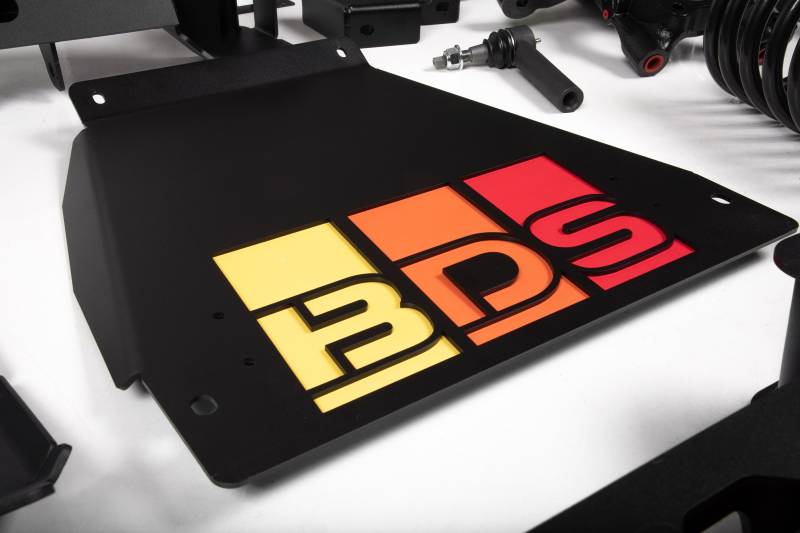

This kit takes advantage of BDS's proven high-clearance architecture for improved ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for excellent on-road handling characteristics. Up front, the kit pairs the FOX 2.5 PE Coil-Overs with high-arched, 1/4-inch thick steel crossmembers, properly relocating the front differential to correct CV operating angles and protecting it with heavy-duty, laser-cut skid plates featuring the iconic tri-color stripe backing plate. Steering geometry is corrected at the new, taller ride height with CNC-machined ductile iron steering knuckles and high-strength tie rod ends, improving control and ESC system compatibility. These, along with the provided sway bar drops, bump stop extensions, brake line brackets, FOX reservoir mounts, and hardware packs, create a comprehensive front suspension lift ready for any challenge. In the rear, the kit utilizes a pair of ProRide coil springs, a track bar relocation bracket, extended sway bar links, and control arm brackets to lift and level the stance while maintaining suspension geometry and load capacity. For shocks, you have the option of FOX 2.0 IFP Performance Series gas shocks or an upgrade to the FOX 2.5 Performance Elite (PE) series piggyback reservoir shocks to match the front and further enhance vehicle performance and adjustability.

FOX 2.5 PE Coil-Overs
FOX 2.5 Performance Elite (PE) coil-overs offer next-level performance for both on-road comfort and off-road capability. Tuned and ready to install right out of the box, these aluminum-bodied, 2.5-inch diameter coilovers are the latest iteration of FOX suspension technology, built to withstand tough conditions. Their lighter design, improved heat dispersion, and race-proven components make them the best all-around product. These coil-overs feature DSC (Dual Speed Compression) adjusters on the remote reservoir for additional fluid capacity and high-speed/low-speed compression tuning, allowing you to easily dial in performance to match any terrain with a simple turn of the knobs.
HD Components
All BDS kits come with a No Fine Print Warranty. To ensure our kits are the best they can be, we use high-strength American steel, high-clearance, fully welded crossmembers, the latest manufacturing processes, and thorough quality inspections at every step. Get the most out of your truck with BDS Suspension and FOX.
Features & Benefits

FOX 2.5 Performance Elite series coilovers and choice of FOX 2.0 or 2.5 (PE) rear shocks for improved ride quality, performance, and capability
High clearance crossmember design maximizes ground clearance Robust steering knuckles and tie rod ends to maintain ESC system compliance
Fullwidth mult-piece skid plate system improved offroad protection
Progressive rate rear coil springs improve ride quality, load capacity and suspension travel
Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels

(Trimming may be required)

37 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5"-6" in. Backspace
37 x 12.5 with 20 x 9 and 5.6 in. Backspace
Rear Shock Option
FOX 2.0 Performance Series
2-inch Impact extruded aluminum body
Internal floating piston (IFP) monotube design
CNC machined 6061-T6 aluminum mounting ends
Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
Increased off-road capabilities
Easily adjust your shock for terrain, load and speed
2.5-inch Impact extruded aluminum body
Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
External reservoir design separates shock oil from the high-pressure nitrogen
DSC - Dual Speed Compression Adjuster comes standard
Fully serviceable for a lifetime of use
1-year Manufacturer's Warranty
