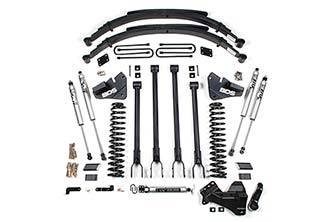

BDS 4 Inch Lift Kit w/ 4-Link and Fox Shocks for Ford F350 Super Duty DRW (17-19) 4WD Diesel (1577FS)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS1577FS
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $2,963.68
Qty:

Description

Raise the height of your 2017-2019 Ford F350 Dually "DRW" Super Duty diesel powered truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Important Notes

  1. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups
  2. Installation requires a torque wrench capable of 405 ft-lbs

Specification

  • Front Lift Method : Coil Spring
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 3"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"

Additional Information

Installation Time: 10 hrs

Installation Difficulty: Difficult

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 5

Installation Tools: Torque Wrench, Drill / Bit Set, Pitman Arm Puller, Reciprocating Saw

Steering Stabilizers Option: BDS2022DF,BDS2022DH

Add On Accessories: BDS122406,BDS123203,BDS123808,BDS123809

Add On Traction Bars: BDS2309,BDS2312

Add On Control Arms: -
