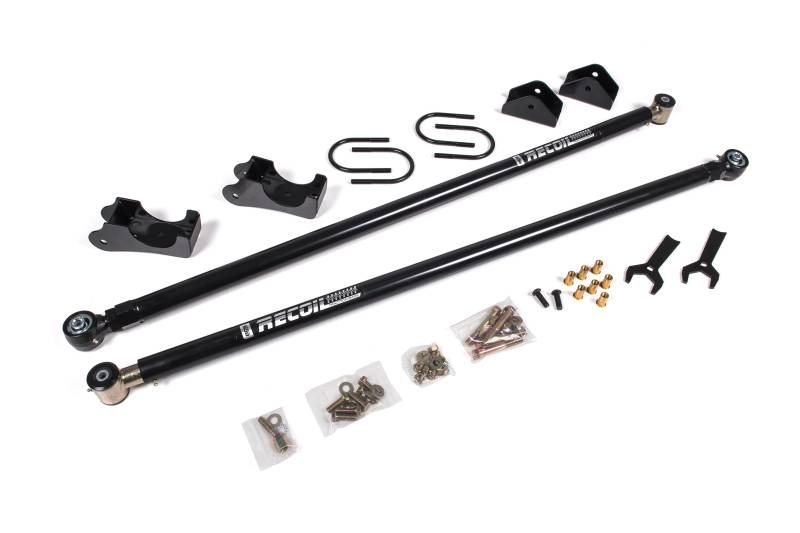

BDS Recoil Traction Bar Kit for Ram 2500 (09-13) and 3500 (09-18) (2305)

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS2305
Available
Pricing: $987.18
Qty:

Description

Improve traction on your 2003-2013 Ram 2500 or 2003-2018 Ram 3500 4WD without limiting wheel travel with a BDS Recoil Traction Bar Mounting Kit, made with heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap. Full float design for bind-free performance and can be installed with a range of lift heights.

Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut. Using a forged housing with large 1-1/4-nch x 12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction. At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.

Features & Benefits

  • Adjustable axle wrap control using dual-stage resistance springs
  • Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
  • Spring preload can be adjusted on the vehicle without disassembling the traction bar
  • Traction bar ends are greaseable and rebuildable
  • Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Important Notes

No Important Notes Listed At This Time

Specification

Not Listed By BDS At This Time

Additional Information

Installation Time: 3-4 hrs

Installation Difficulty: Moderately Easy

Add On Required Hardware: Nothing Requried At This Time

Backspacing: -

Installation Tools: -

Steering Stabilizers Option: -

Add On Accessories: -

Add On Traction Bars: -

Add On Control Arms: -
