BDS 4.5 Inch Lift Kit w/Fox Shocks and 3" Rear Block Kit for Chevy Silverado or GMC Sierra 2500HD/3500 w/o Overload (11-19) (1819FS)

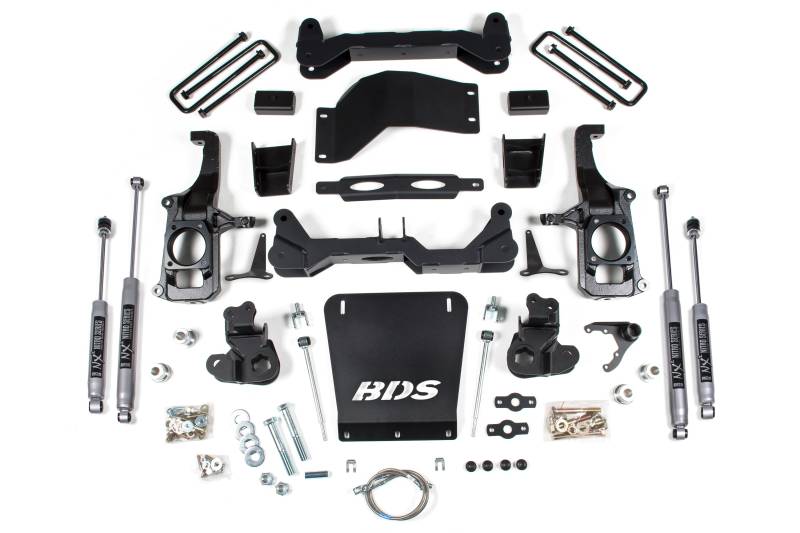

This image is a representation of the product only. Actual product may vary in appearance.

BDSK-BDS1819FS
Available
Item sold as a kit. call 800-365-8610 for component availability.
Pricing: $3,378.11
Qty:

Description

Improve the stance, performance, and capability of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD 4WD with a BDS 4.5-inch lift kit. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.

Features & Benefits

  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
  • Choice of NX2 or FOX 2.0 gas shocks for improved performance

Important Notes

  1. Torsion Bar Tool required to load/unload the torsion bars.
  2. Stock 17" & 18" wheels cannot be reinstalled.
  3. Stock 20" wheels cannot be reinstalled on 2015-2019 models
  4. Factory dually wheels cannot be reinstalled.
  5. Models with two-piece rear driveshaft may require #121612.
  6. Top mounted rear overload spring-equipped models require a different kit than non-overload equipped models. Be sure to select the correct option for your truck.
  7. Depending on the specific wheel and tire combination trimming may be required for 35x12.50s

Specification

  • Front Lift Method : Cross-Member
  • Front Lift Height : 4.5"
  • Rear Lift Method : Block
  • Rear Lift Height : 3"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"

Additional Information

Installation Time: 8-10 hrs

Installation Difficulty: Difficult

Add On Required Hardware: Nothing Requried At This Time

Backspacing: 4.625

Installation Tools: Cut Off Wheel or Equiv., Reciprocating Saw, Torsion Bar Unloading Tool

Steering Stabilizers Option: BDS85425

Add On Accessories: -

Add On Traction Bars: BDS2301

Add On Control Arms: -

Vehicle Fitment

Supplied Vehicle Information for BDS1819FS
